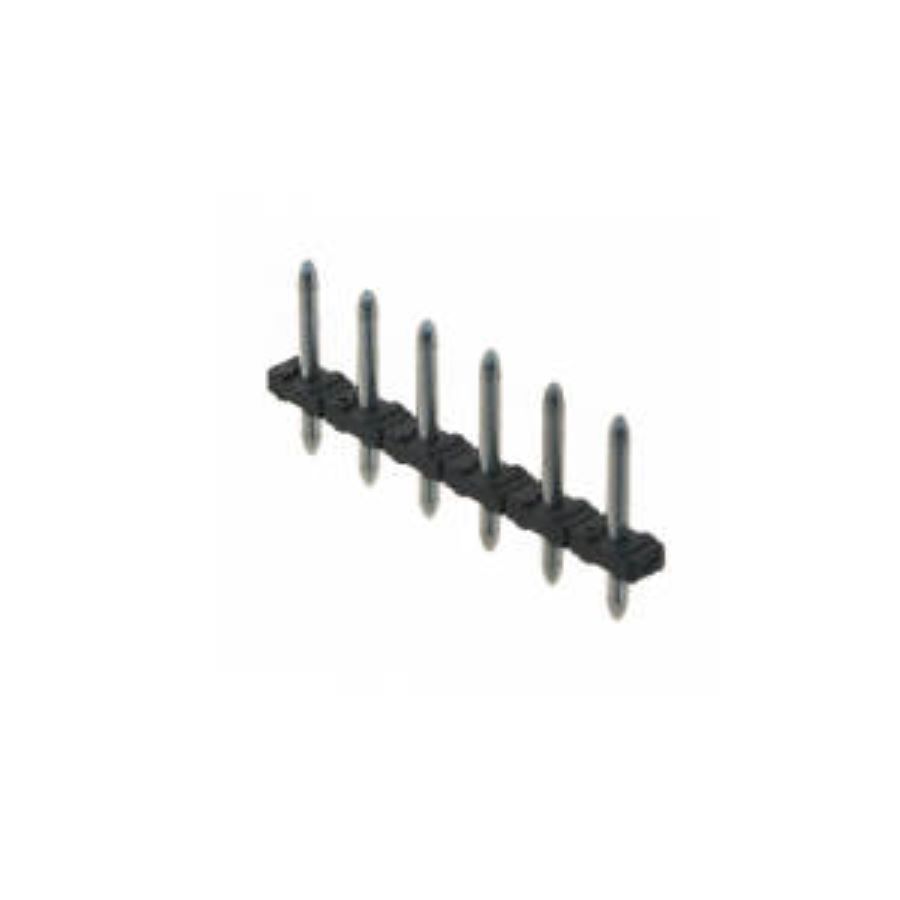

1933228
Manufacturer:
Phoenix Contact
Mfr.Part #:
1933228
Datasheet:
Description:
Headers and Wire Housings Through Hole Number of Positions:6 Pitch:5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 400 V |
| Length | 30 mm |
| Width | 25 mm |
| Termination | Solder |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 1.040002 g |
| Contact Plating | Tin |
| Pitch | 5 mm |
| Current | 16 A |
| Current Rating | 10 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 26 AWG |
| Housing Color | Black |
| Mating Post Length | 7.5 mm |
| Stripping Length | 30 mm |
| Termination Post Length | 3.5 mm |
Stock: 3285
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.37231 | $3.72310 |
| 25 | $0.32411 | $8.10275 |
| 50 | $0.30584 | $15.29200 |
| 100 | $0.27455 | $27.45500 |
